MOBILE CRUSHING AND SCREENING PLANT CLOSED CIRCUIT TYPE DRAGON 9
Price
Check with seller
Category
Advertisement ID
#1872
Ad Posting Date
July 2, 2019
Loading
Description

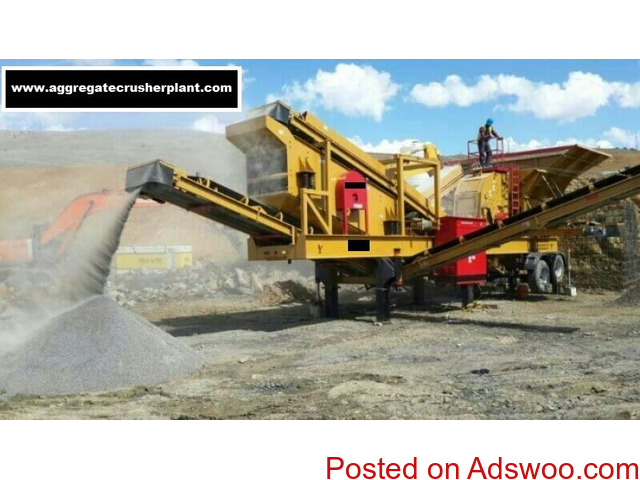

New Generation Mobile Crushing and Screening Plant Closed Circuit Type Dragon 9
DRAGON 9 - Mobile Closed Circuit Crusher and Screening Plant - New Technology Limestone, River Stone, Mining Crusher.
DRAGON 9 - Closed circuit crushing system is all collected in one single platform and can be transported with a truck. The R-D group has designed this series for short term installation . This crushers can easily do the work of classical plants . Dragon Series refers to a crushing /screening closed-circuit plant on one chassis. Offers unsurpassed production of cubical spec products for small, medium, or large jobs. Produces multiple, cubical spec products with three-deck inclined screen. Returns material retained on the top deck to the impactor for further processing. This machines are the most prefered in Turkish market and the World market .
Existing machinery and equipment in the system ;
*Vibrating Feeder and Hopper
The feeder system is operating with 2 vibromotors ( Italian Brand Oli) which leads to low maintenance and trouble-free operations.
The feeder is suitable for feeding with Excavator and Loader and can be feed as well with truck with an additional hopper.
All wear points in the feeder and in the hopper are protected by replaceable wear shields. At the points where wear may occur, wear arms are bolted and can be easily replaced.
The additional hopper can be opened and closed by the hydraulic system. This allows easy assembly and disassembly.
The feeding tray has a screening system. In this screening system there is a zig zag type grizzly system which can eliminate the large materials easily .
By-pass conveyor allows sifted and thin materials to be stocked in the stock area , or it can send this materials directly to the main band by a clapper groove. Thanks to this clapper groove, the mine can be transported to the stock area without entering the stone crusher, or the main band can be fed. This is a factor that increases the capacity.
DRAGON 9 NEW GENERATION TURBO CRUSHING SYSTEM
Rotor Size : 1100 X 800 mm
Crusher type : Primary, Secondary and Tertiary .
Feeding size : 850 X 800 mm
There is setting mechanism which leads to easy configuration.
The wearing armor is 16-18% manganese and chromium alloy.
The rotors are specially manufactured and have replaceable wear shields in their wear exposed parts.
Motor power : 110 kw
Rotor pallets are 16-18% manganese and chrome alloy. It is also suitable for two-sided use. Longer wear times can be caught on this count.
The setting blocks are 16-18% manganese and chrome alloy. The adjustment blocks have a hydraulic adjustment mechanism for easy adjustment.
The crusher has 2 long type adjustment blocks for thinning. Thanks to these blocks, the thinning curve is very high.
Hardox 500 wear armor is used in the breaker side wall armor.
There are also two lifting pistons for opening and closing the crusher.
The powerful body is unique thanks to its powerful rotor and powerful adjustment blocks.
It is unprecedented with high reduction rates of up to 50 times.
When a material that can not break into the crusher enters, the hydraulic overload prevention device enters the circuit and the crusher elements are protected.
When a material that can not break enters into the crusher , the hydraulic overload prevention system blocks the circuit and the crusher elements are protected.
* Main Conveyor Belt System
It is 800 mm wide and is of palette type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. Side scraper system is available to prevent outflow.
* Vibrating Screen Belt System
Screen Size : 1500 X 4500 mm
Vibrating Screen Type : High Capacity
Motor Power : 11 kw
Three different sizes of screening.
Special type bearing suitable for vibration.
* Under-Sieve Stock Conveyor Belt System
It is 800 mm wide and foldable type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. A side scraper system is available to prevent spillage of the final product into the stock area during crushing. Foldable with hydraulic piston for easy assembly and disassembly of the system.
* Stock Conveyor Belt System
There are 2 units, 600 mm wide folding type.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
A side scraper system is available to prevent spillage of the final product into the stock area during crushing.
Foldable with hydraulic piston for easy assembly and disassembly of the system.
* Feedback Conveyor 1 Belt System
It is 600 mm wide.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
Side scraper system is available to prevent outflow.
http://www.dragoncrushers.com/new-generation-mobile-crushing-and-screening-plant-cl
