Ultrasonic Cable Height Meter
Price
Check with seller
Category
Advertisement ID
#3140
Ad Posting Date
August 23, 2019
Loading
Description

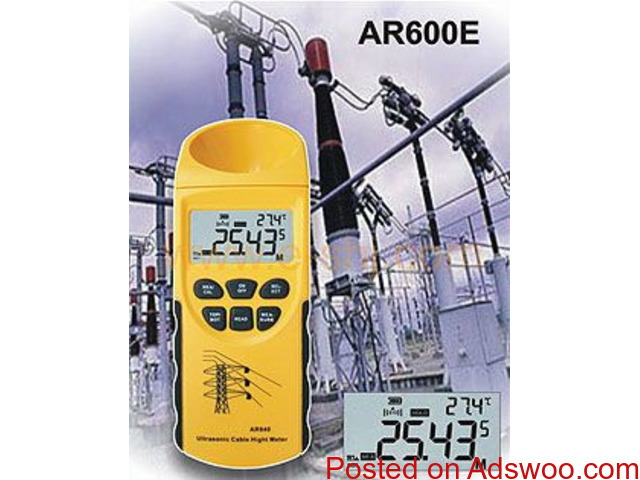

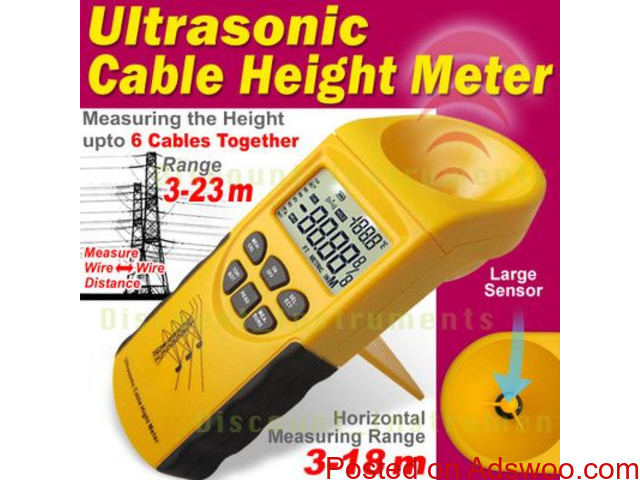

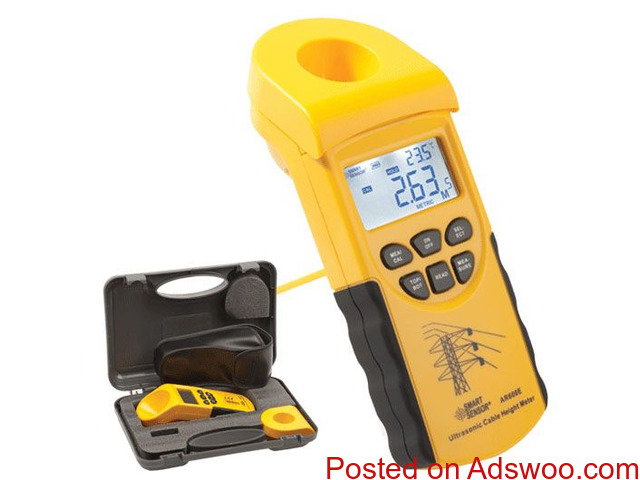

SMART SENSOR (USA) Assembled in China, Ultrasonic Cable Height Meter
FEATURES

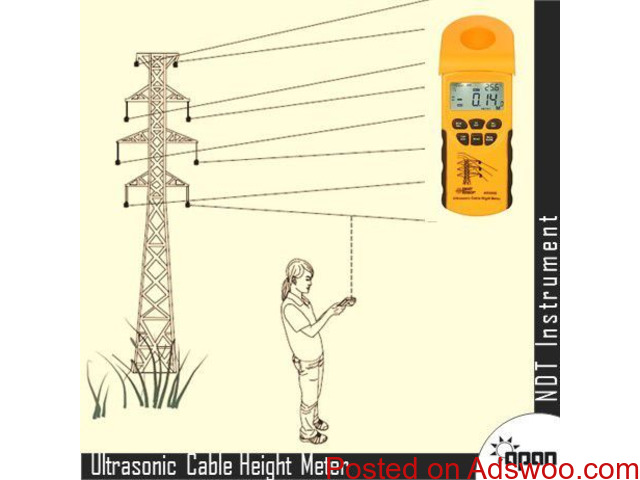

1. For measuring the height up to 6 cables together
2. Convenient to take measurement, easy to aim at the measuring position and to read measuring results.
3. For measuring the distance between wire and wire
4. Be applicable to different use of cables
5. Uses large measuring sensor, higher accuracy than existing cable height meter in market
6. Compact and easy to take along.
7. For measuring dimension of house and distance between objects
8. The temperature compensation function enables the unit compensates error automatically under the temperature of -10C+40c, and ensures the measuring accuracy on different temperature conditions
TECHNICAL PARAMETERS
Measuring Range: 3 - 23 meter
Measuring Range: ± 5mm(less then 10m) ± 10mm (more than 10m)
Bot Mode: measuring the height of the lowest 6 cables
Top Mode: measuring the height of the highest 6 cables
Power: 9V Battery
Horizontal Measuring Range: 3 - 18 Meter
Minimum Gap Between Wires: 150mm
Auto Power Off: Yes
Back Light Display: Yes
FEATURES
1. For measuring the height up to 6 cables together
2. Convenient to take measurement, easy to aim at the measuring position and to read measuring results.
3. For measuring the distance between wire and wire
4. Be applicable to different use of cables
5. Uses large measuring sensor, higher accuracy than existing cable height meter in market
6. Compact and easy to take along.
7. For measuring dimension of house and distance between objects
8. The temperature compensation function enables the unit compensates error automatically under the temperature of -10C+40c, and ensures the measuring accuracy on different temperature conditions
TECHNICAL PARAMETERS
Measuring Range: 3 - 23 meter
Measuring Range: ± 5mm(less then 10m) ± 10mm (more than 10m)
Bot Mode: measuring the height of the lowest 6 cables
Top Mode: measuring the height of the highest 6 cables
Power: 9V Battery
Horizontal Measuring Range: 3 - 18 Meter
Minimum Gap Between Wires: 150mm
Auto Power Off: Yes
Back Light Display: Yes
